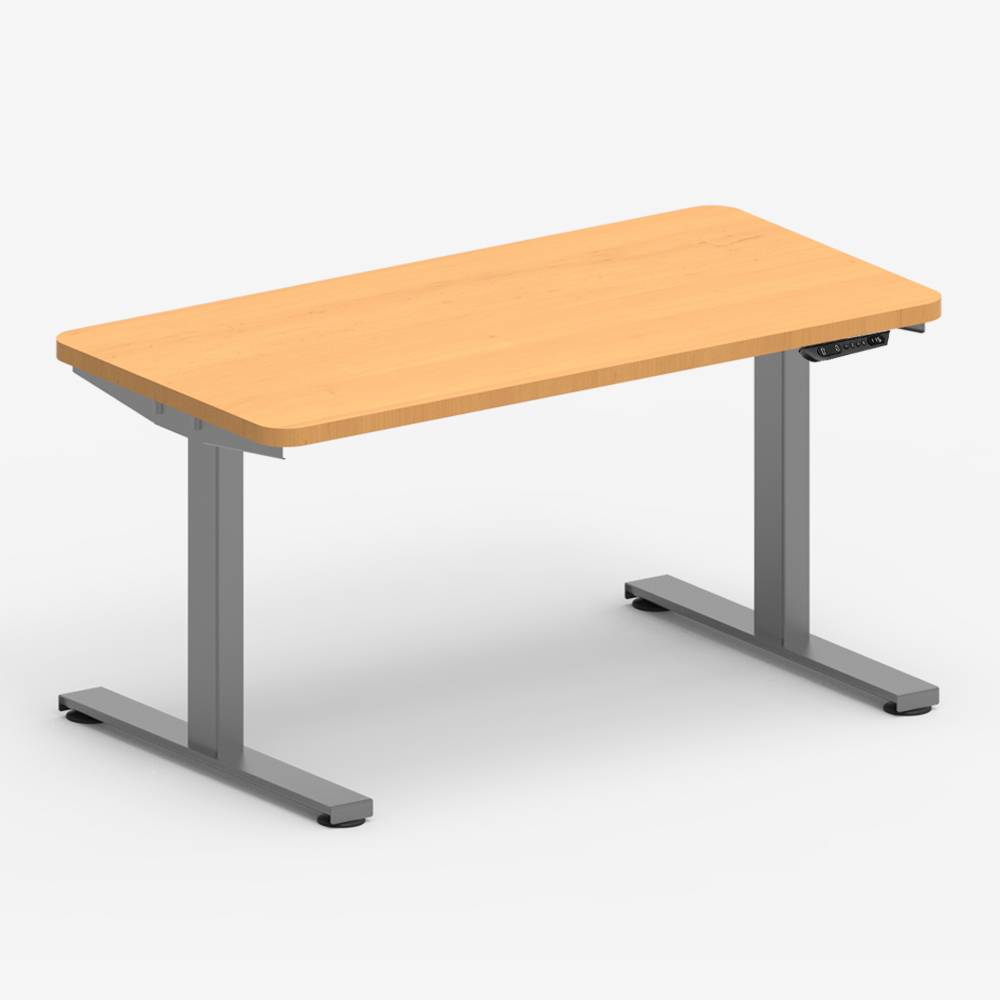

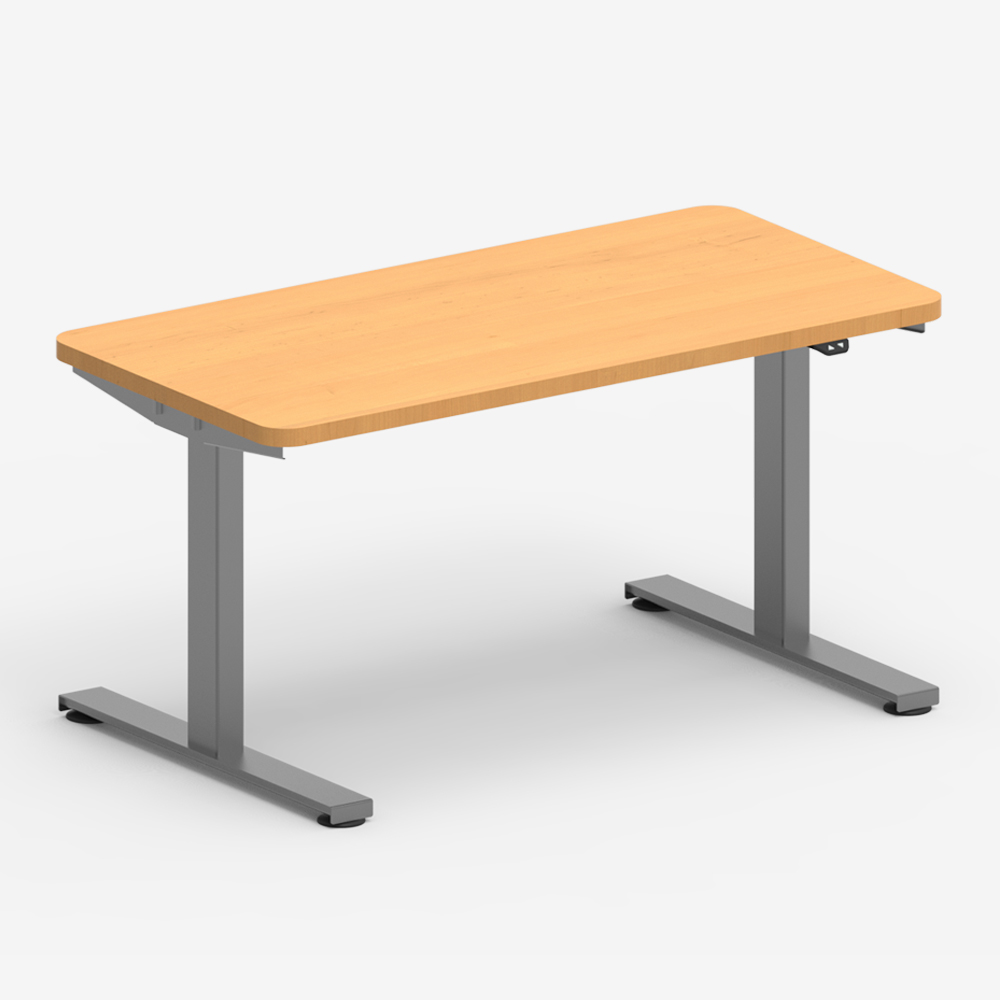

A-Series Sit-Stand Base

List Price:$1,389.00$2,053.00



Description

Features

► All Solid State Technology Smooth Travel and Proven Soft Stop and Start

► Single Motor Design Eliminates Most Issues with Two Leg Bases

► Works with All Grand Stands Control Switch Options

► 2 Leg Base Only with Expandable Drive From 45 7/3″ to 68 3/4″

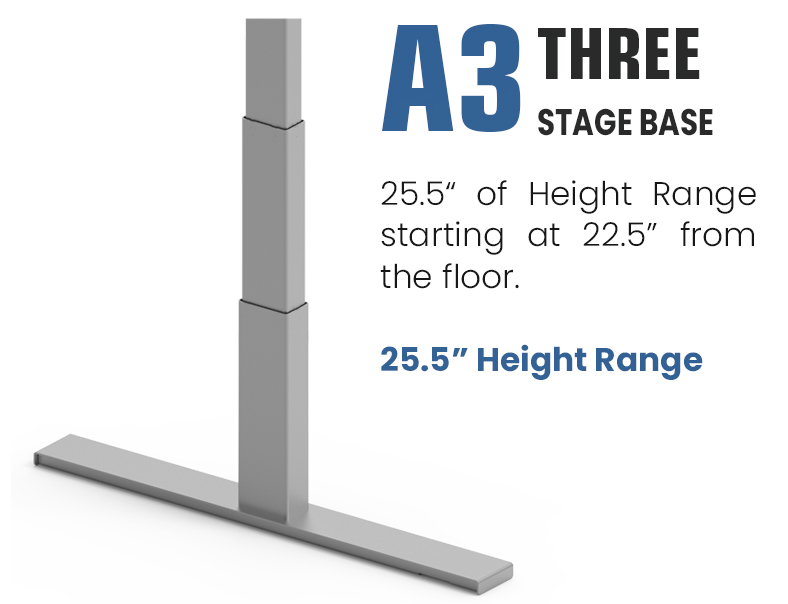

► Starting Height is 22.5″ From The Floor with 25.5″ of Height Adjustment

► 1600 Newton Lift, 350 Pounds of Load Lift Per Base

► Gyroscope Technology for Soft Impact Detection

► Less Than 0.IW Standby Power Draw

► 1.5” Travel Per Second Standard

► UL Listed, Meets BIFMA Standards ► Easy to Install – Snap On Feet



Easy Assembly Video







Easily install the crossbeam to the worksurface with cantilevers. The cantilevers snap in place and then the cantilevers and the crossbeam need to be screwed into the worksurface.





Place the top of the leg and foot assembly over the end of the crossbeam just before the cantilever supports. The top of the assembly will slide over the crossbeam and snap in place. Once both leg assemblies snap in place, turn the table right side up and plug the switch and the power chord to the beam and then turn over and plug into the wall, then push “down” button first. Hold for a few seconds and then depress the up button.





Easily click on both feet to the bottom of each leg and you are done!



Additional information

Product options

, , , , ,

A-Series Table Base - Cutsheet

Download(14 MB)
